Troubleshooting - Check Relay Operation
With Main Power Switch 'on', LED's #1 & #2 should operate.
Check 'Main Power' Relays

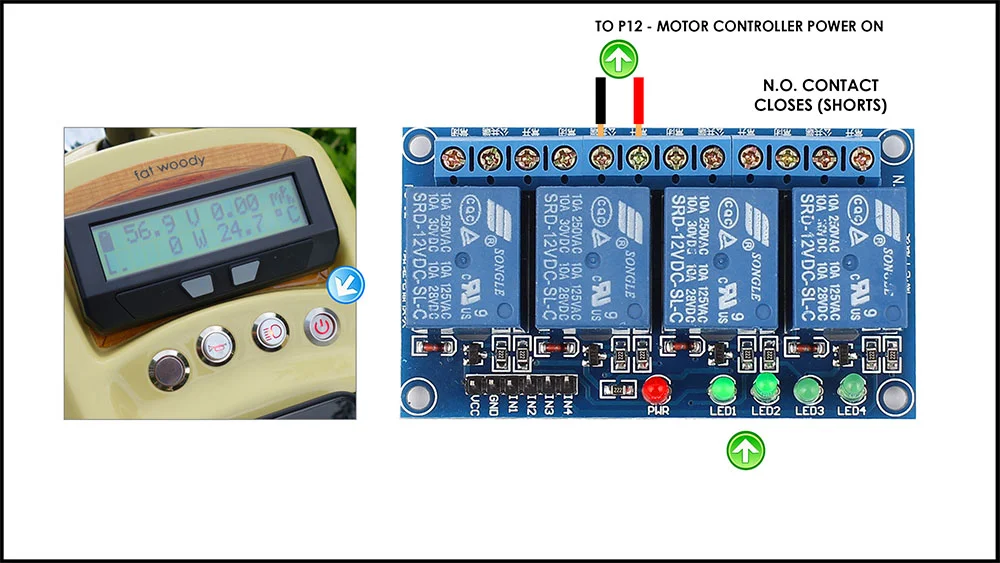

Operating the Main Power Button should trigger relays 1 & 2 (illuminating green LED's 1 & 2).
- Does the main power button illuminate LED's 1 & 2?
Yes (Normal) Click Here
No (Abnormal) Click Here
